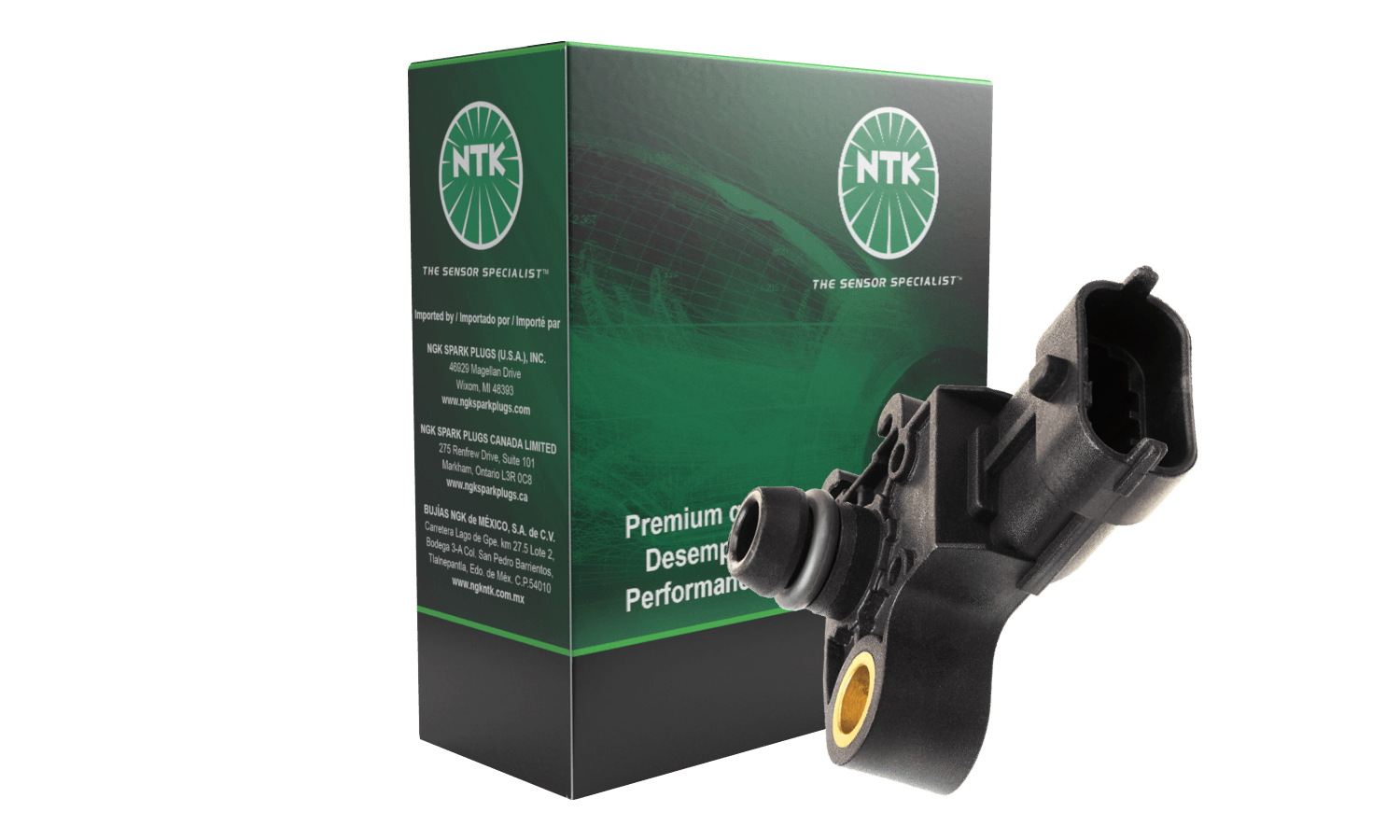

Manifold Absolute Pressure Sensors
PURPOSE
- The manifold absolute pressure (MAP) sensor determines the intake manifold pressure or vacuum
FUNCTION
- Sends voltage signal to the ECM which changes with the varying pressure/vacuum within the intake manifold
- ECM uses signal to determine engine load and ensure proper air/fuel ratio
POSITION
- Intake manifold, throttle body or remote mounted under hood
CAUSE FOR REPLACEMENT
- Check engine lamp illumination
- Engine hesitation
- Poor fuel economy
- Failed emissions test
- Engine stalling
- Extended crank time
THE NTK DIFFERENCE
- All NTK sensors exceed OEM standards for fit, form and function
- Rigorously tested for quality, performance and durability in the most
- severe conditions
- Backed by a standard warranty and best in class technical support

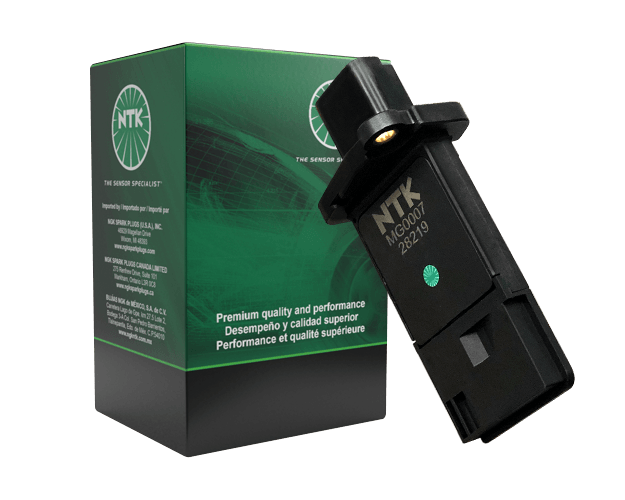

Mass Air Flow Sens ors
PURPOSE
- The mass air flow sensor determines air volume as it enters a fuel injected engine.
FUNCTION
- Air mass information is necessary for the Powertrain Control Module (PCM) to balance and deliver the correct fuel mass to the engine
POSITION
- In the intake air stream between the air cleaner and before the throttle body
CAUSE FOR REPLACEMENT
- Check engine lamp illumination • Excessive fuel consumption
- Delay in acceleration
- Lack of power
THE NTK DIFFERENCE
- All NTK sensors exceed OEM standards for fit, form and function
- Rigorously tested for quality, performance and durability in the most severe conditions
- Backed by a standard warranty and best in class technical support

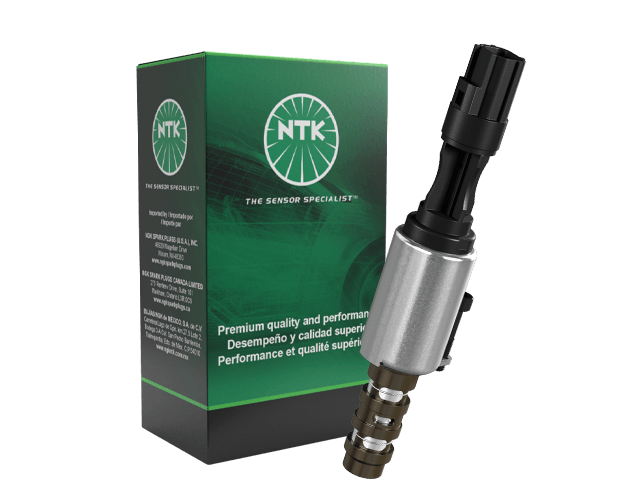

VVT Solenoids
NTK is expanding its line of premium technical sensors with the addition of Variable Valve Timing Solenoids. To ensure quality and authenticity, each part is tested to strict OE standards.
THE NTK DIFFERENCE
- Meet the demands of today’s VVT engines at both low and high RPMs
- 100% oil tested for consistent quality and functionality
- All NTK variable valve timing solenoids exceed OEM standards for fit, form and function
- Backed by an industry leading warranty and best in class technical support
FAILURE PREVENTION
Variable valve timing solenoids have a fine mesh screen which cover the oil ports. This screen reduces the opportunity for them to become clogged over time and increases part efficiency.
- Prior to installation it is suggested that you lubricate the VVT solenoid O-rings and install per OEM specifications
- NTK recommends a vehicle oil and filter change at the time of replacement to ensure proper VVT operation and warranty
